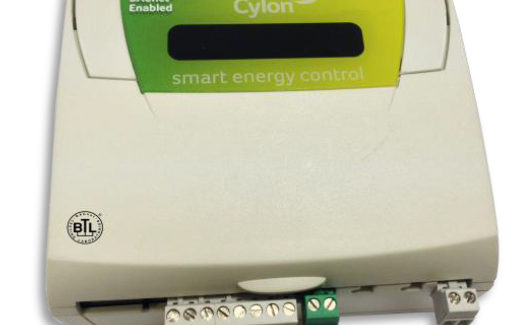

CBR " CBR " The Cylon BACnet Router range connects any BACnet MS/TP network to a BACnet/IP network, and optionally acts as a Modbus gateway. CBR Controllers are BTL Listed BACnet Application Specific Controllers. CBR Series CBR | CBR/MOD | CBR/MODex Download Datasheet PDF

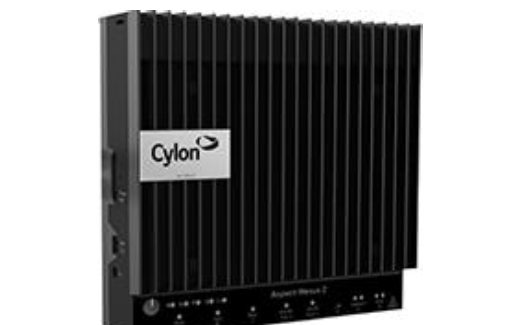

NEXUS The NEXUS is an IoT (Internet of Things) embedded ASPECT® Control Engine designed to provide flexible site control applications for medium to large scale building automation systems. It can be used to connect with Cylon CB Series and AAM NB Series of BACnet® MS/TP field level controllers. The NEXUS supports serial communications protocols such [...]

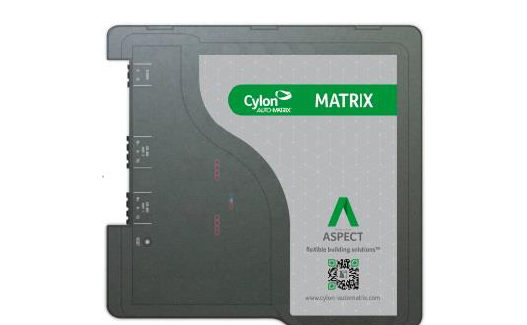

MATRIX Ideal for smaller facilities, the MATRIX Series Aspect Control Engine is an embedded building automation network controller designed to provide flexible area control applications to a building energy management system. Interacts seamlessly with protocols such as BACnet MS/TP, Unitron, AAM PUP and Modbus. MATRIX has the ability to provide traditional control features such as [...]

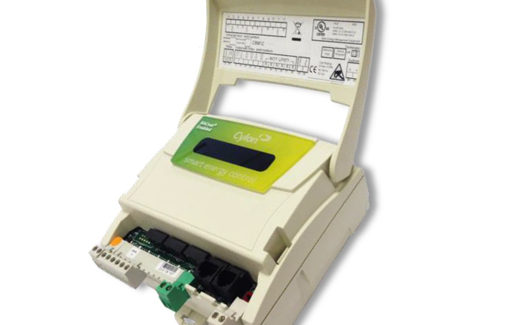

CBM The CBM (Cylon BACnet Main Plant) range of controllers are ideally suitable for main plant control, including AHUs, Boilers, Rooftop Units, Lighting, etc. CBM Controllers are BTL Listed BACnet Advanced Application Controllers. Download Datasheet PDF

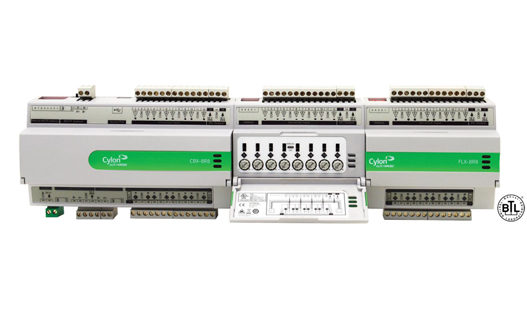

CBX The CBX-8R8 is a fully programmable BTL-listed BACnet Advanced Application Controller (B-AAC) that communicates on an RS-485 local area network using the BACnet MS/TP protocol. This controller features 8 UniPuts™ with Relay and 8 Universal Inputs as well as support for up to three FLX (Field Level eXpansion) series extension modules providing up to [...]

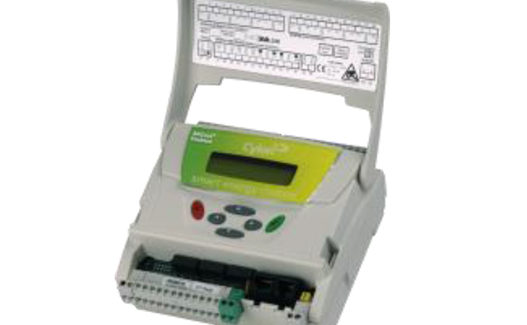

UC32.netK The UC32.netK is an Ethernet-based peer-to-peer Communications Controller, used to network UnitronUC32 Field Controllers together. The UC32.netK co-ordinates communication between I/O controllers on its fieldbus, with other UC32.netKs and with PCs using Ethernet, and other peripherals using RS232/RS485 serial protocols. It can also add additional communications protocols such as BACnet and Modbus to the [...]

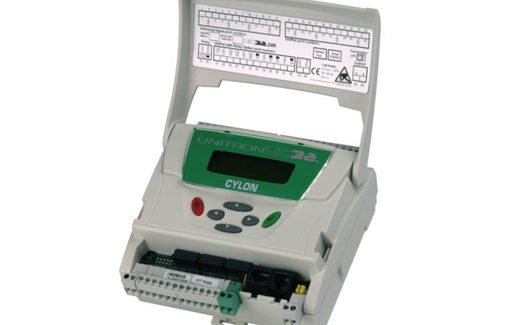

UC32 The UC32.XX is a programmable controller, with XX Universal Inputs, XX UniPut channels, XX UniPut + Relay channels, and an optional built-in keypad interface. Cylon's UnitronUC32.xx and UnitronUC32.24K are ideally suitable for main plant control, including AHUs, Boilers, Rooftop units, Lighting etc. UC32 Series UC32.8 | UC32.12 | UC32.16 | UC32.24 Download Datasheet PDF

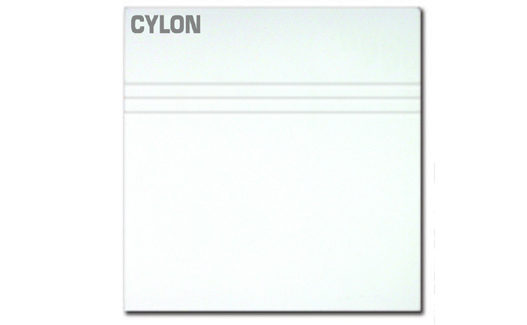

Room Temperature Sensor The Cylon Room Temperature Sensors are surface mounting room temperature sensors and operating panels, designed for temperature measurement . Download Datasheet PDF

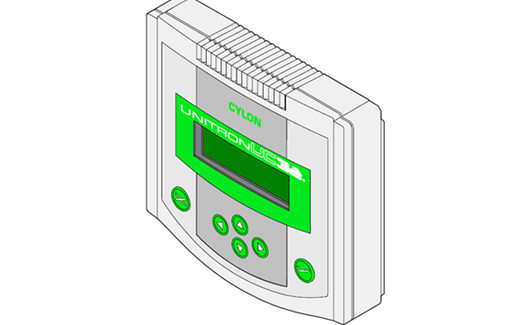

UCKRA420 Keypad The UCKRA420 is a keypad interface for the Unitron System, which allows conditions on a Unitron site to be viewed and changed. It can also be used to configure UC32 controllers. Panel,surface mounted or handheld remote serial display and keypad with 2m cable for connection to compatible controllers (UC32.netK, UC32.XX, UCXXPG-R, UCC4/3P/K); Features [...]

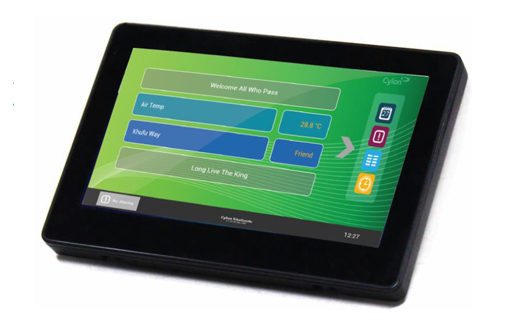

Cylon SiteGuide The Cylon SiteGuideV2 is an easy to program, easy to use touchscreen menu based user interface device that allows basic supervision of a Cylon Unitron UC32 BMS sites. Intuitive 10” Colour Touchscreen. Flexible Menu structure ensures site navigation is made easy. The 10” colour screen has easy-click buttons which make the SiteGuide easy to use. Graphical [...]
